Six frequency points
BDS B1I, GPS L1 C/A, GPS L2, GPS L5, GLONASS L1 and Galileo E1.
Countermeasures · DR200-S1
DR200-S1 Navigation Spoofing Device
DR200-S1 generates satellite-navigation spoofing signals in real time; its standard configuration covers six frequency points across GPS, BDS, GLONASS and Galileo. It alters the coordinates seen by UAVs that rely on these systems, enabling directional expulsion in eight directions and area denial around government facilities, nuclear plants and large event venues.
- Fixed-site
What it does
Fixed GNSS spoofing unit for directional expulsion and area denial.
Directional expulsion
Drives targets away in eight directions or holds an area denial zone.
Real-time acquisition
Receives and decodes GPS, BDS, GLONASS and Galileo signals for time synchronisation and ephemeris.
Works with other sensors
Network interface for interoperation with radio direction-finding equipment, radar and other platforms.
Swarm-capable
Defends against multiple targets, including swarms.
Technical specifications
Figures are taken from the DR200-S1 specification sheet (March 2026). Performance depends on site, target and environment.
| Supported systems | GPS, BDS, GLONASS, Galileo |
|---|---|
| Spoofing frequency points | BDS B1I 1561.098 MHz; GPS L1 C/A 1575.42 MHz; GPS L2 1227.6 MHz; GPS L5 1176.45 MHz; GLONASS L1 1602 MHz; Galileo E1 1575.42 MHz |
| Spoofing activation time | < 10 s |
| Number of UAVs spoofed | ≥ 10 |
| Frequency tolerance | < ±2 × 10⁻⁶ |
| Defence range radius | 1 km |
| Rated power | 300 W |
| Power supply | AC 220 V / 50 Hz |
| Operating temperature | −40 to +60 °C |
| Protection rating | IP66 |
| Main unit weight | ≤ 11 kg |
| Dimensions | 355 × 351 × 150 mm (L × W × H) |

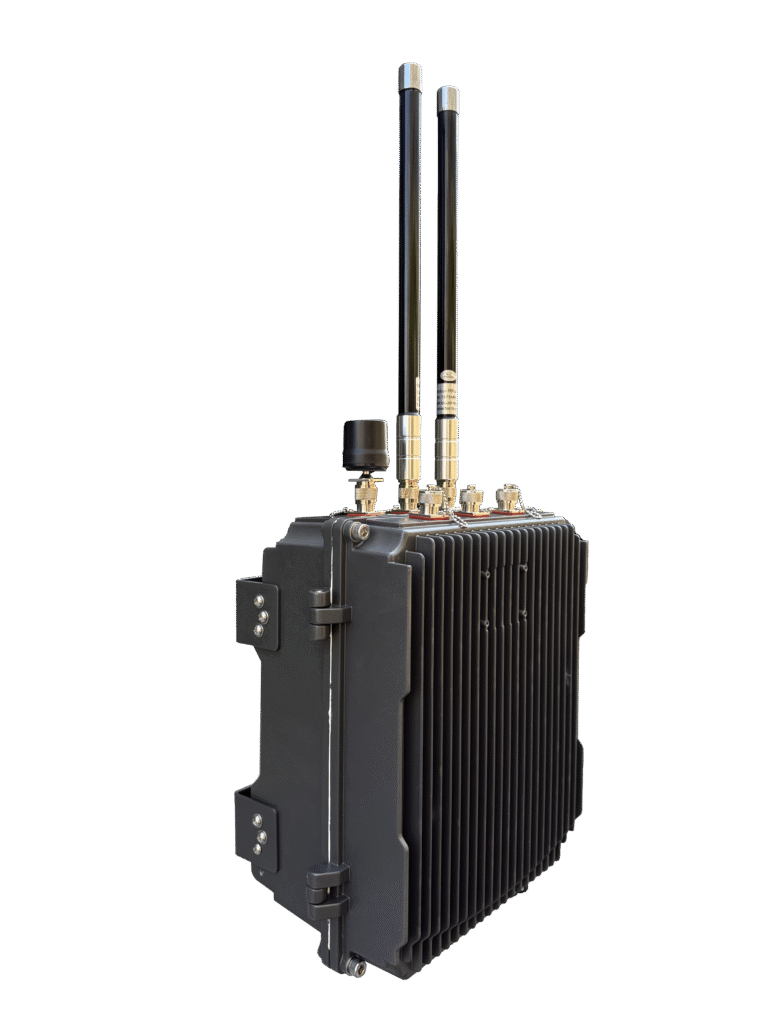

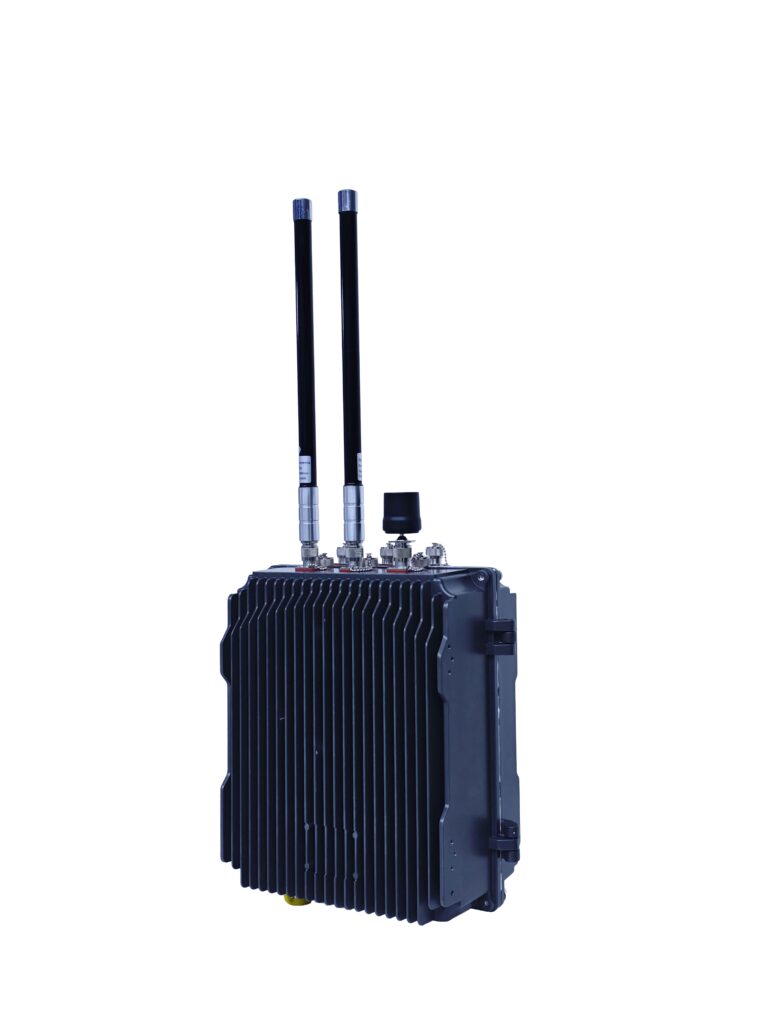

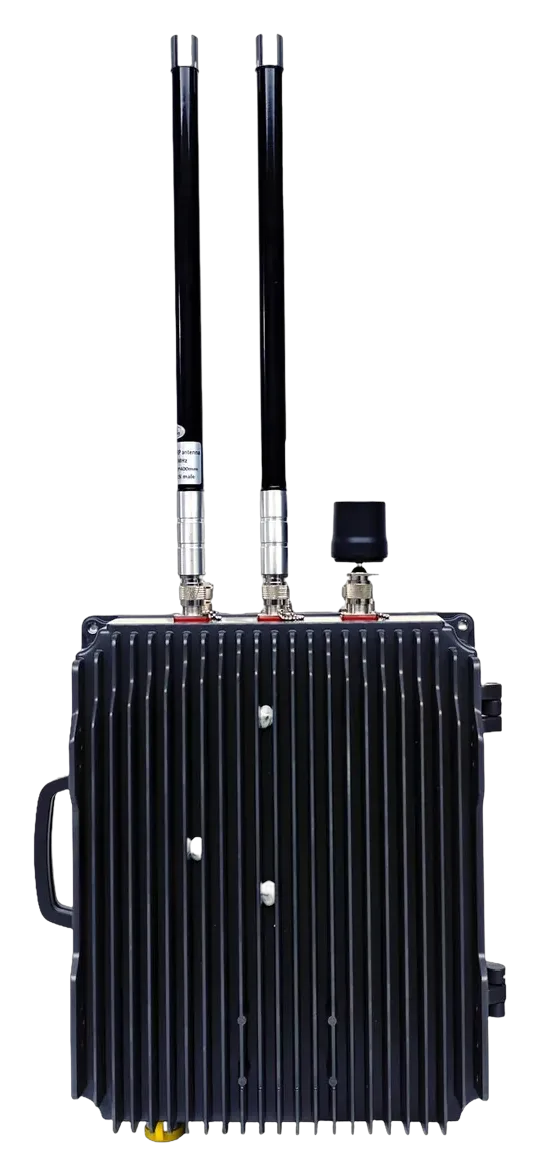

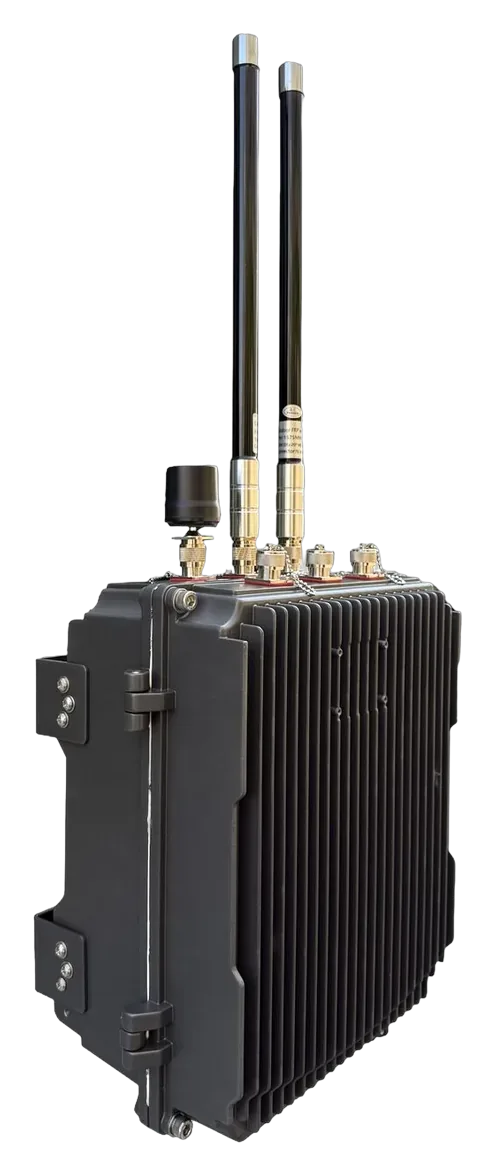

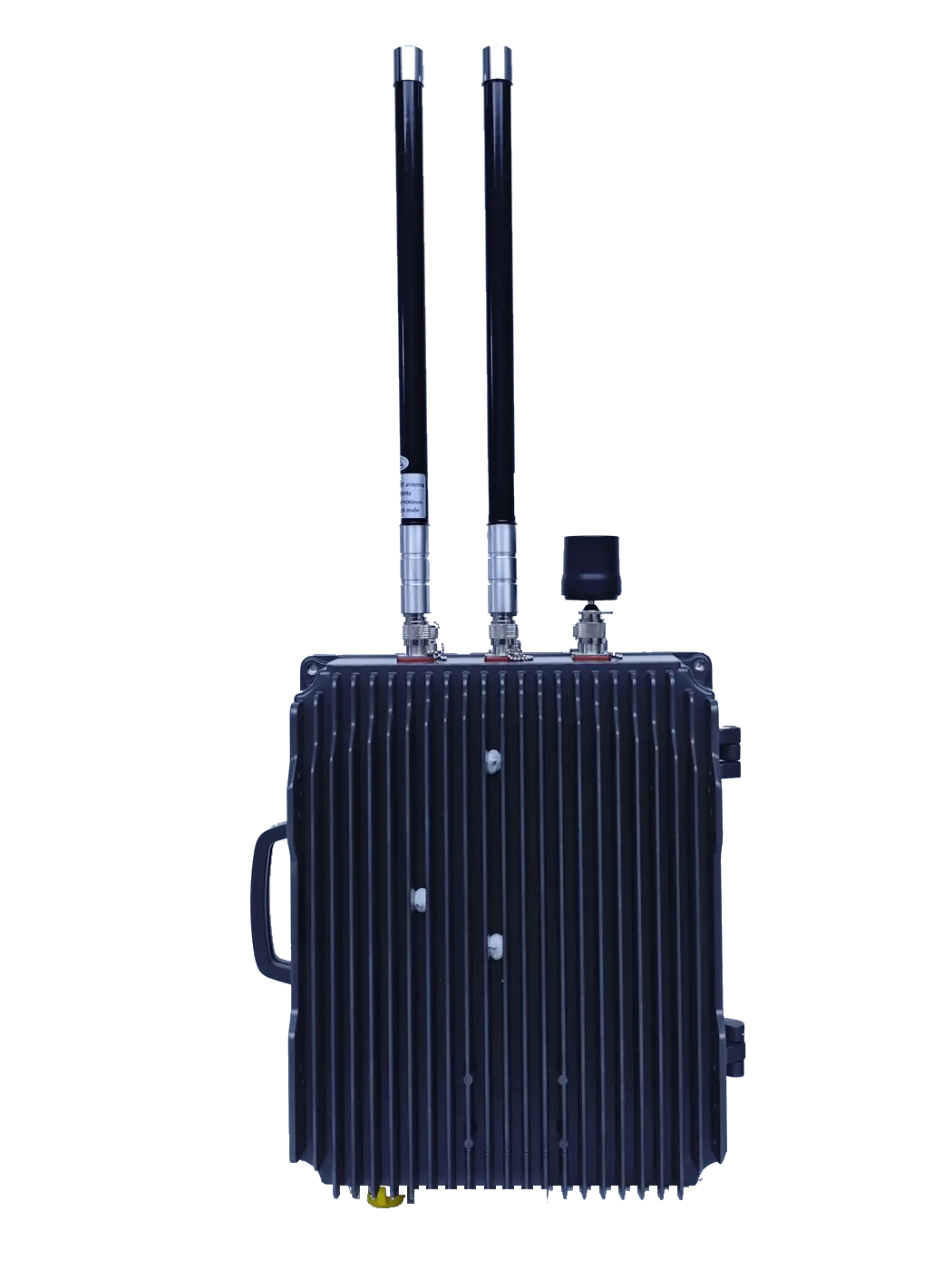

Product views
What is included
Standard and optional items listed in the specification sheet. Final packing list is confirmed in your quotation.
- Main unit
- Transmitting antenna × 2
- GPS receiving antenna
- Power cable
Authorised users only. Jamming and navigation-spoofing equipment is supplied only to authorised government, military and security users. Purchase, import and operation are subject to the laws of the destination country.
Works with
Combine sensors and response equipment into one system around your site plan.
DR200-CFixed Counter-Drone SystemFixed-site detection with omnidirectional and directional jamming, controlled from a cloud platform. 13-band and 16-band configurations can be customised.DR500-ABPortable Counter-Drone SystemShield-type portable unit combining RF detection and six-channel jamming.DD-R10Low-Altitude Surveillance RadarX-band 3D radar for drones, aircraft, birds, vehicles and vessels, with ≥ 500 simultaneous tracks.
FAQ
DR200-S1: frequently asked questions
What is the DR200-S1?
The DR200-S1 is a navigation spoofing device for fixed sites. It generates spoofing signals on satellite navigation bands in real time for drones that rely on GPS, BDS, GLONASS or Galileo, supporting directional expulsion and area denial.
Which satellite navigation signals does the DR200-S1 cover?
Six frequency points: BDS B1I, GPS L1 C/A, GPS L2, GPS L5, GLONASS L1 and Galileo E1.
What area does the DR200-S1 protect?
A defence radius of 1 km, with activation in under 10 seconds and 10 or more drones handled at once.
Can the DR200-S1 work with other sensors?
Yes. A network interface lets it interoperate with radio direction-finding equipment, radar and other platforms.
Who can buy the DR200-S1?
Navigation-spoofing equipment is supplied only to authorised government, military and security users, subject to the laws of the destination country.
Need DR200-S1 for your project?
Tell us about the site, environment and quantity. We reply by email with the next step.
