Fixed-site RF monitoring
Scan 70 MHz–6 GHz for supported drone radio signals from a fixed monitoring point.
PASSIVE RF DETECTION · FIXED DEPLOYMENT

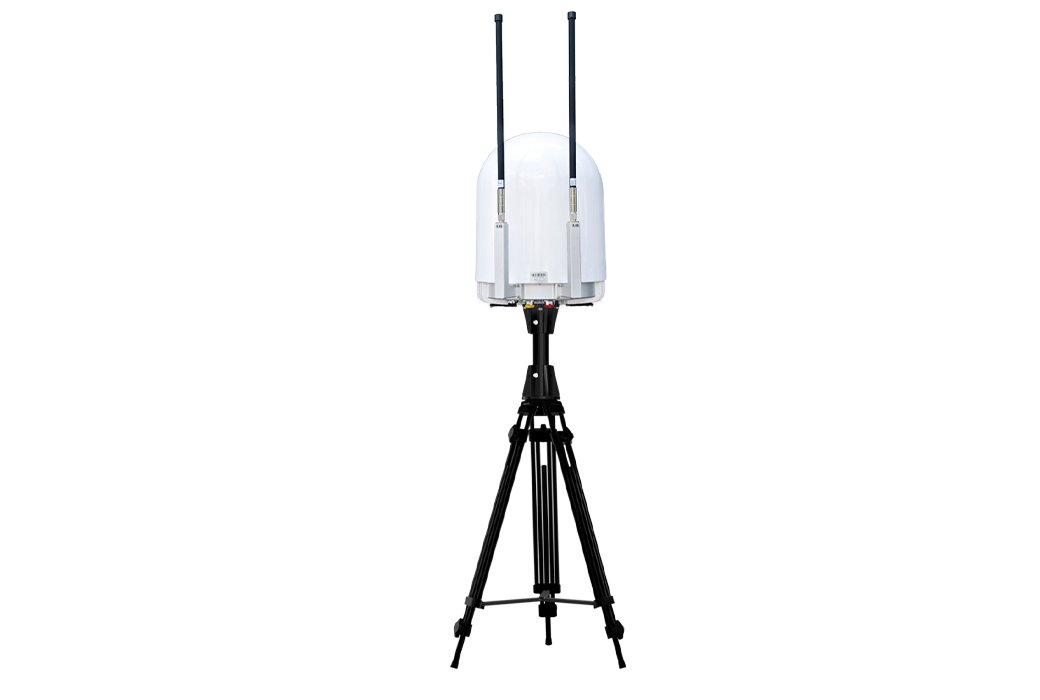

DR200-A Fixed RF Drone Detection System
DR200-A is a fixed RF drone detection system for site monitoring. It combines passive signal detection, drone and pilot positioning for supported protocols, analog FPV video reception and activity records in one installation.
- Fixed installation
- Site monitoring
- Passive RF reception
What it does
Passive RF monitoring from a fixed installation, with positioning for supported protocols and configurable monitoring functions.
Drone and pilot positioning
View available drone and pilot or controller location data for supported DID/RID protocols and models.
Analog FPV video
View and record compatible analog FPV video where reception and use are permitted.
Alerts and activity records
Review monitoring alerts, map-based information and detection history through the configured software.
Network and data connections
LAN, WAN and USB interfaces connect the device to the monitoring workstation and data workflows.
Configuration options
Confirm the 6–8 GHz detection extension when specifying the system. Signal acquisition and AI learning are optional.
Technical specifications
Manufacturer specifications. Detection and positioning depend on supported signals, installation and the local RF environment.
| Model | DR200-A |
|---|---|
| Deployment | Fixed installation |
| Standard detection band | 70 MHz–6 GHz |
| Extended detection band | 6–8 GHz; confirm the supplied configuration |
| Detection range | 5 km under manufacturer-specified line-of-sight and RF-noise conditions |
| Positioning support | Supported DID/RID protocols and models |
| Horizontal detection coverage | 360° |
| Video function | Compatible analog FPV reception, viewing and recording |
| Data interfaces | LAN (RJ45), WAN (RJ45), USB |
| Power consumption | ≤100 W |
| Operating temperature | −40 °C to +60 °C (specified tolerance: ±2 °C) |
| Device weight | ≤17 kg |
| Device dimensions | 400 mm diameter × 531 mm height |
| Protection rating | IP66 |
| Signal acquisition and AI learning | Optional |

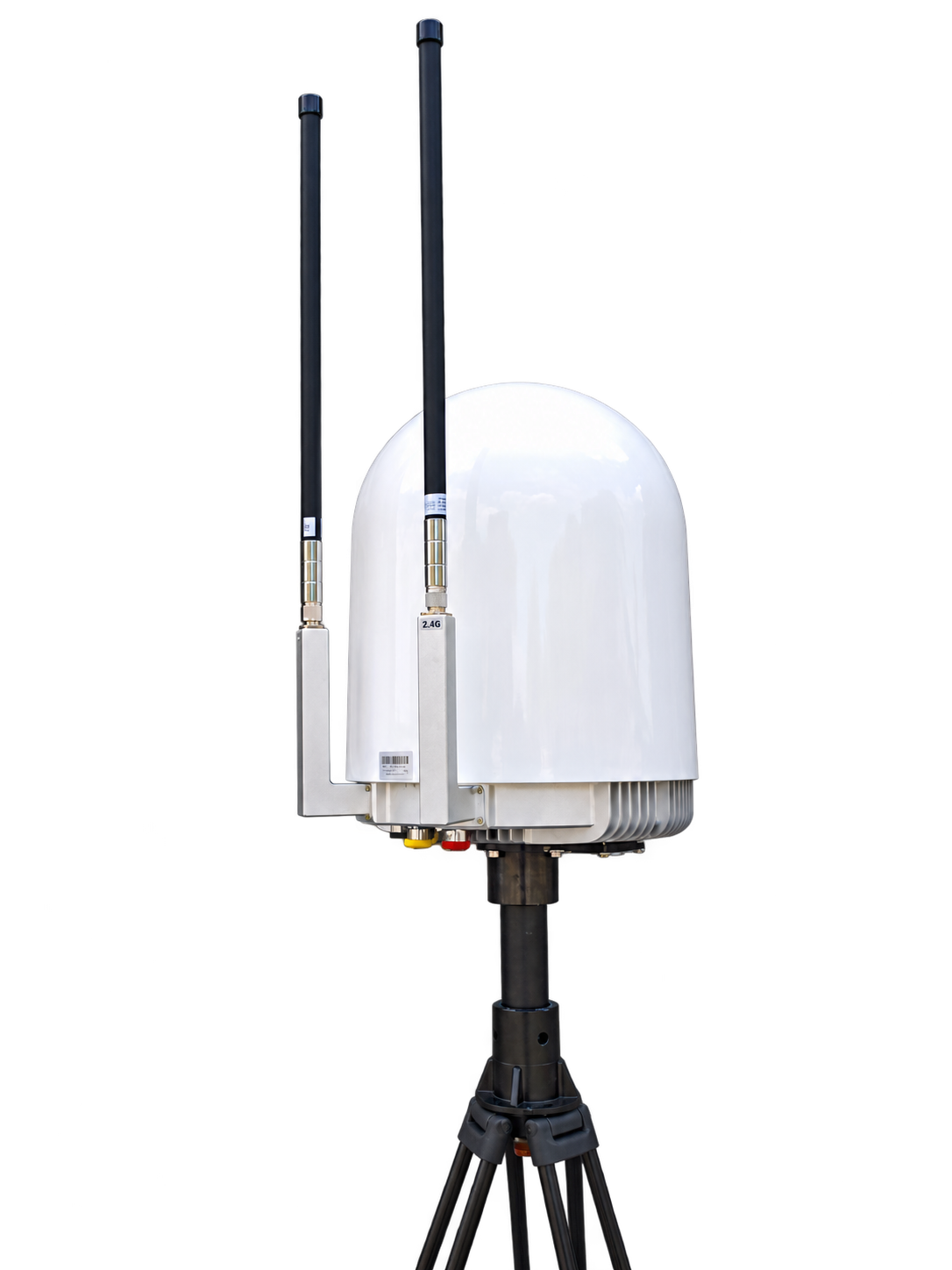

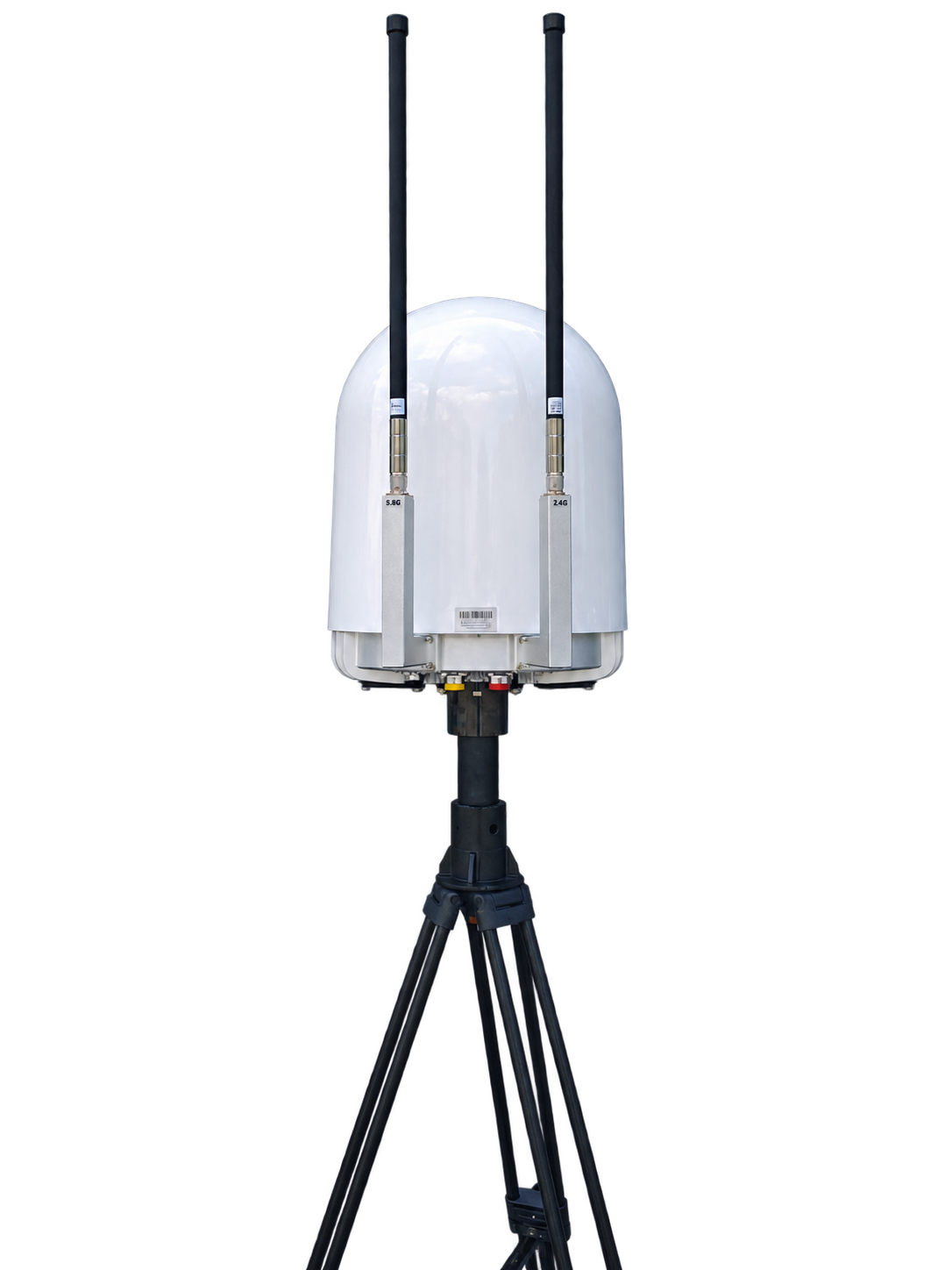

Product views
FAQ
Questions about DR200-A
How does DR200-A differ from DR600-A?
DR200-A serves a fixed monitoring point. DR600-A is the portable/backpack option when equipment needs to move between locations.
Which drones can it detect and locate?
RF detection requires detectable radio emissions. Identity and location information depend on supported protocols, drone models and transmitted data; RF monitoring alone does not cover drones without detectable radio signals.
Which configuration details should be confirmed?
Confirm supported models and protocols, any 6–8 GHz extension, software functions and video compatibility. Signal acquisition and AI learning are optional.
