EO/IR tracking · DD-E5
DD-E5 Long-Range EO/IR Tracking System
DD-E5 is a spherical photoelectric turntable for low-altitude security at bases, borders, coasts and other key areas. The spherical housing resists strong wind and vibration, and the upper-lower split structure packs for transport. A 16 TOPS processor supports recognition of people, vehicles, drones and birds.
- Fixed-site
What it does
Spherical long-range EO/IR turntable with built-in 16 TOPS processor.
Precise pointing
Maximum rotation speed of 200°/s or more, and 0.005° positioning accuracy with a transmission-free encoder.
On-board AI
Built-in 16 TOPS processor for target recognition (person, vehicle, drone, bird) and tracking.
Wind-resistant sphere
Low-vibration spherical housing with industrial defrosting and strong-heat-source protection.
Three colour options

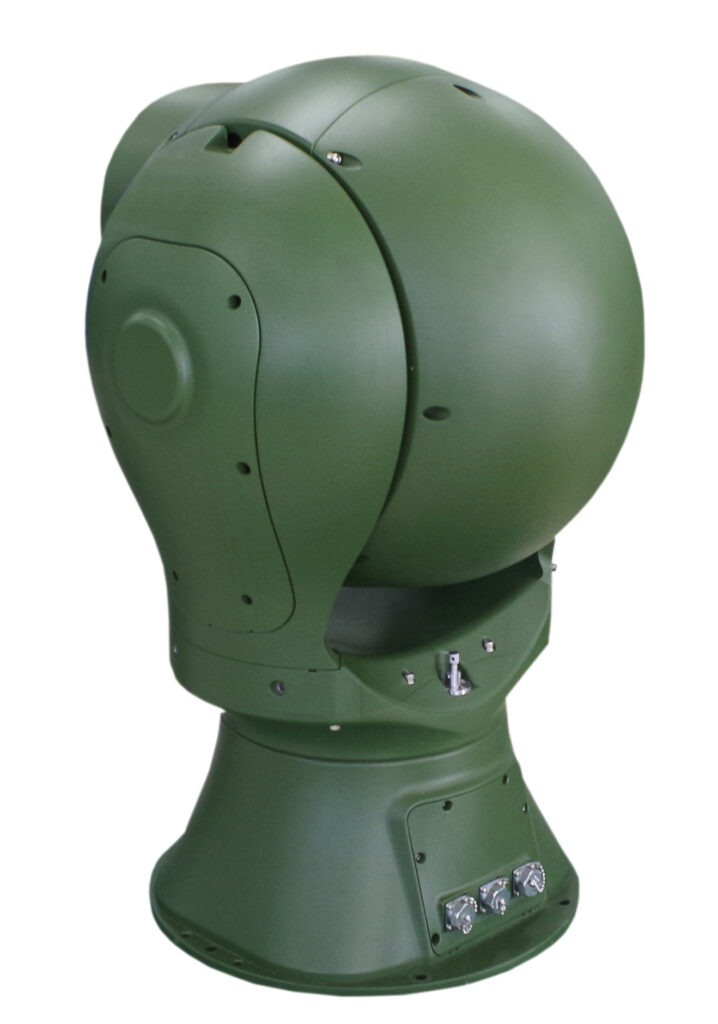

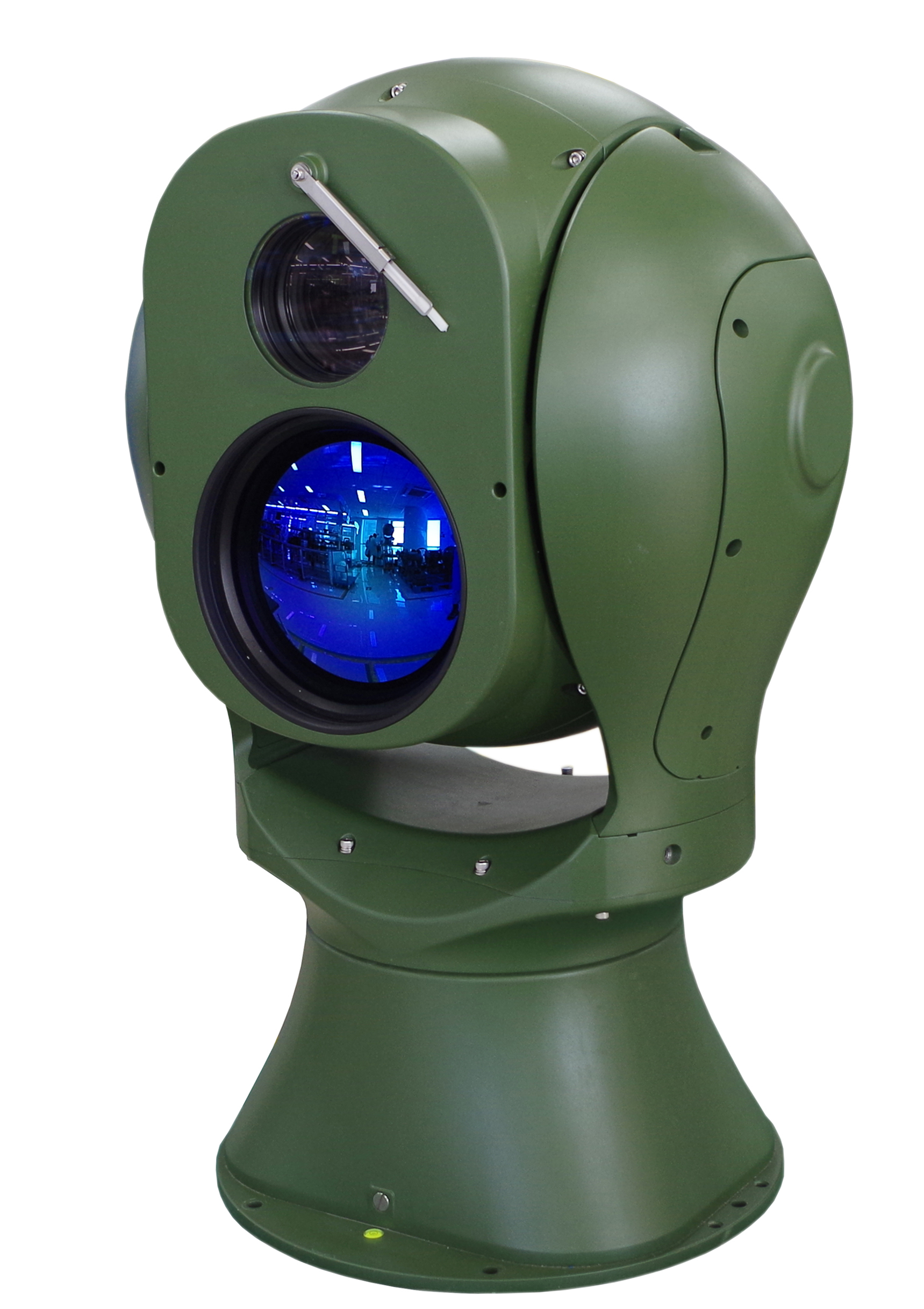

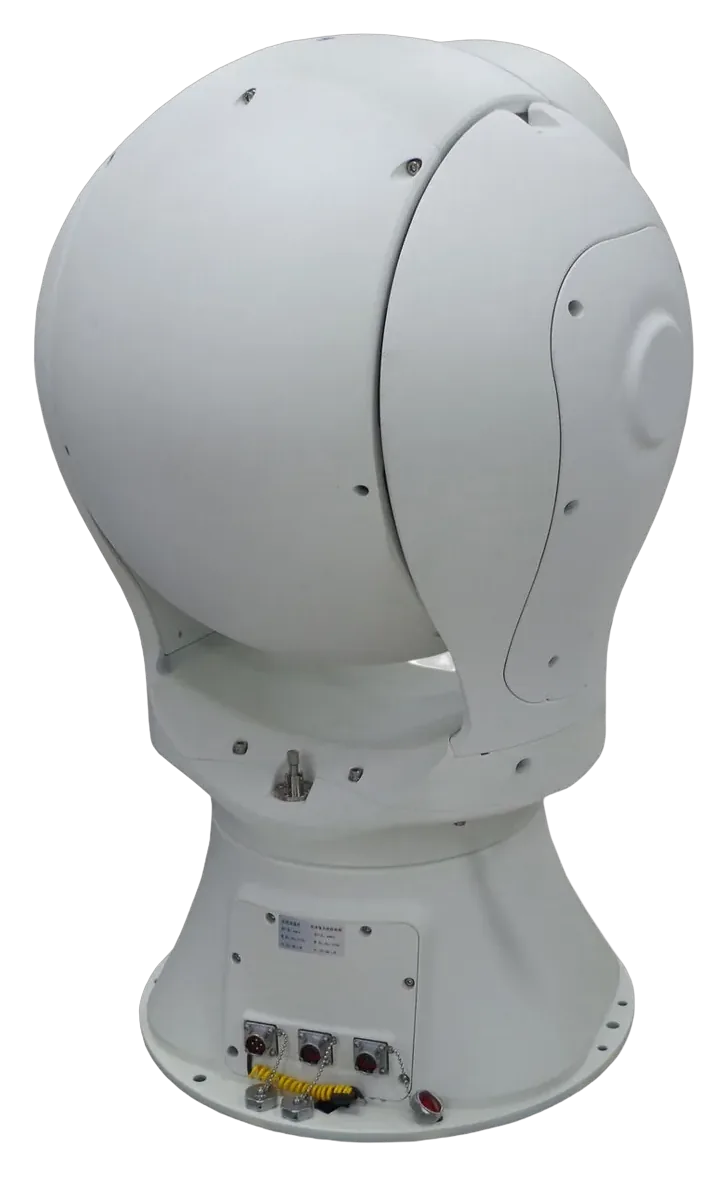

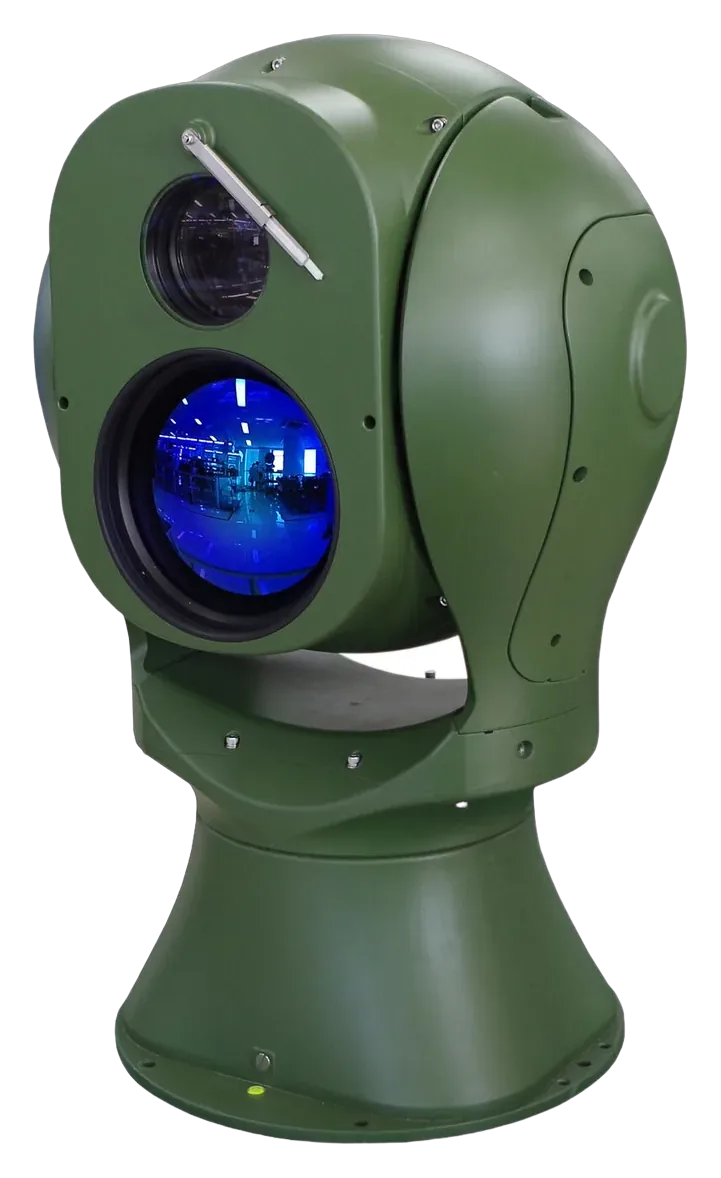

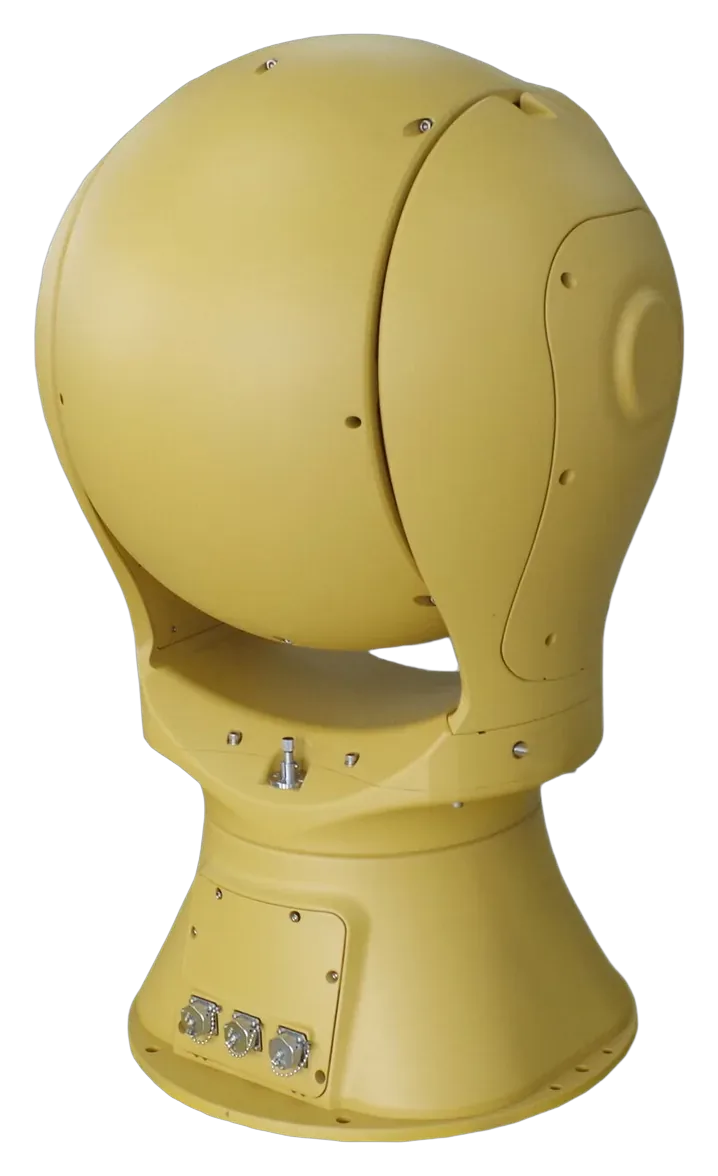

Photographed in white, green and sand finishes.
Technical specifications
Figures are taken from the current DD-E5 specification sheet. Performance depends on site, target and environment.
| Working distance (0.3 × 0.3 m UAV, visibility ≥ 20 km) | Visible: detect ≥ 5000 m, track ≥ 4000 m, identify ≥ 3000 m. Thermal: detect ≥ 2000 m, track ≥ 1500 m, identify ≥ 1000 m |
|---|---|
| Visible camera | 2688 × 1520; 12.5–775 mm HD electric zoom |
| Thermal camera | Uncooled VOx 640 × 512; 8–14 μm; 23–230 mm, 10× continuous zoom |
| Rotation range | Azimuth N × 360° continuous with mechanical lock on power loss; pitch −90° to +90° |
| Rotation speed / acceleration | Azimuth 0.01–120°/s, maximum ≥ 200°/s; pitch 0.01–90°/s; 120°/s² both axes |
| Position accuracy | Better than 0.005° |
| Processor | Built-in 16 TOPS |
| Working / storage temperature | −40 to +60 °C / −45 to +70 °C |
| Protection | IP67; surge protection power 4000 V, signal 2000 V |
| Interface | 1 × 100M/1000M adaptive Ethernet |
| Power | AC 220 V ±20 %, 50 Hz; maximum ≤ 600 W, stable ≤ 150 W |
| Size / weight | Ø565 × 880 mm; < 110 kg |
Product views
What is included
Standard and optional items listed in the specification sheet. Final packing list is confirmed in your quotation.
- EO/IR turntable (upper and lower sections)
- Power and communication cables
- Control software (per specification)
Works with
Combine sensors and response equipment into one system around your site plan.
FAQ
DD-E5: frequently asked questions
What is the DD-E5?
The DD-E5 is a long-range spherical EO/IR turntable for bases, borders, coasts and other key areas. It carries a 12.5–775 mm visible zoom lens and a 23–230 mm thermal zoom lens.
How far can the DD-E5 see a drone?
For a 0.3 × 0.3 m drone at visibility of 20 km or more: visible detection 5000 m or more and tracking 4000 m or more; thermal detection 2000 m or more and tracking 1500 m or more.
Can the DD-E5 classify targets?
Yes. A built-in 16 TOPS processor recognises people, vehicles, drones and birds and supports tracking.
What are the DD-E5 weight and protection rating?
Under 110 kg, IP67, with a working temperature of −40 to +60 °C. It has been photographed in white, green and sand finishes.
