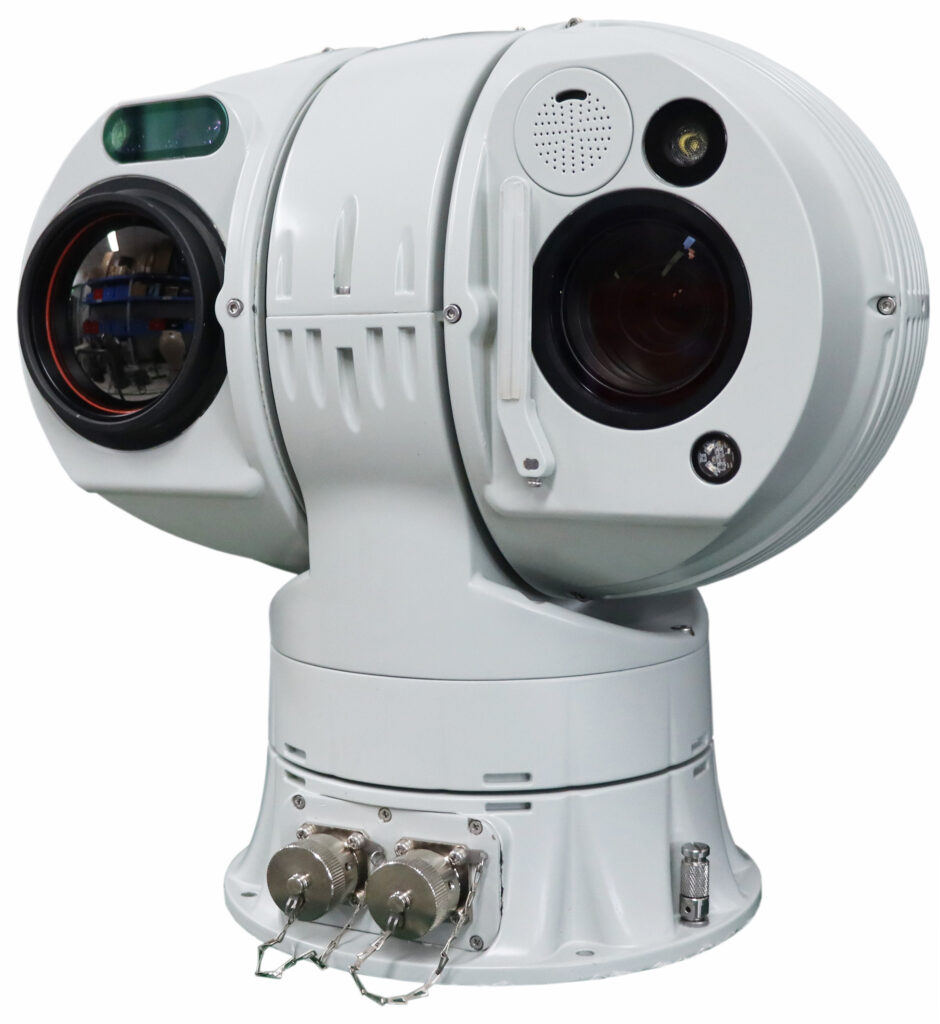

DD-E2 Multi-Sensor EO/IR Tracking System
DD-E2 is a miniature photoelectric turntable for integrated air-ground security at key sites. It pairs a low-light HD visible camera with an uncooled thermal imager, tracks automatically and can be cued by radar, spectrum detectors or jamming equipment.
- Fixed-site
What it does
Miniature short-range EO/IR turntable with low-light HD camera and VOx thermal imager.
Fast, precise pointing
100°/s rotation, 120°/s² acceleration and better than 0.02° positioning accuracy.
Automatic tracking
Embedded hardware tracker with multi-target capture, anti-occlusion tracking and radar cueing.
Behaviour analytics
Region and boundary intrusion, movement detection and target classification.
Outdoor-ready
Aluminium alloy, double-layer three-proof protection, IP67.
Technical specifications
Figures are taken from the current DD-E2 specification sheet. Performance depends on site, target and environment.
| Working distance (0.3 × 0.3 m UAV, visibility ≥ 15 km) | Visible: detect ≥ 2500 m, track ≥ 2000 m, identify ≥ 1000 m. Thermal: detect ≥ 1000 m, track ≥ 800 m, identify ≥ 500 m |
|---|---|
| Visible camera | 1920 × 1080; 7–320 mm HD lens; field angle 1.28° – 41.67° |
| Thermal camera | VOx uncooled 640 × 512; 8–14 μm; 100 mm prime lens (optional 25–75 mm zoom); view angle 4.4° × 3.5° |
| Rotation range | Azimuth 360° continuous; pitch −90° to +90° |
| Rotation speed / acceleration | Azimuth 0.01–100°/s; pitch 0.01–80°/s; ≥ 120°/s² |
| Position accuracy / tracking accuracy | Better than 0.02°; tracking ≤ 0.5 mrad |
| Working temperature | −20 to +60 °C (−40 to +60 °C optional) |
| Protection | IP67; surge protection power 4000 V, signal 2000 V |
| Interfaces | 1 × RJ45 network, 1 × DC 24 V power |
| Power | AC 220 V ±20 %, 50 Hz; peak < 300 W, stable < 120 W |
| Weight / size | < 12 kg; 314 × 312 × 200 mm |

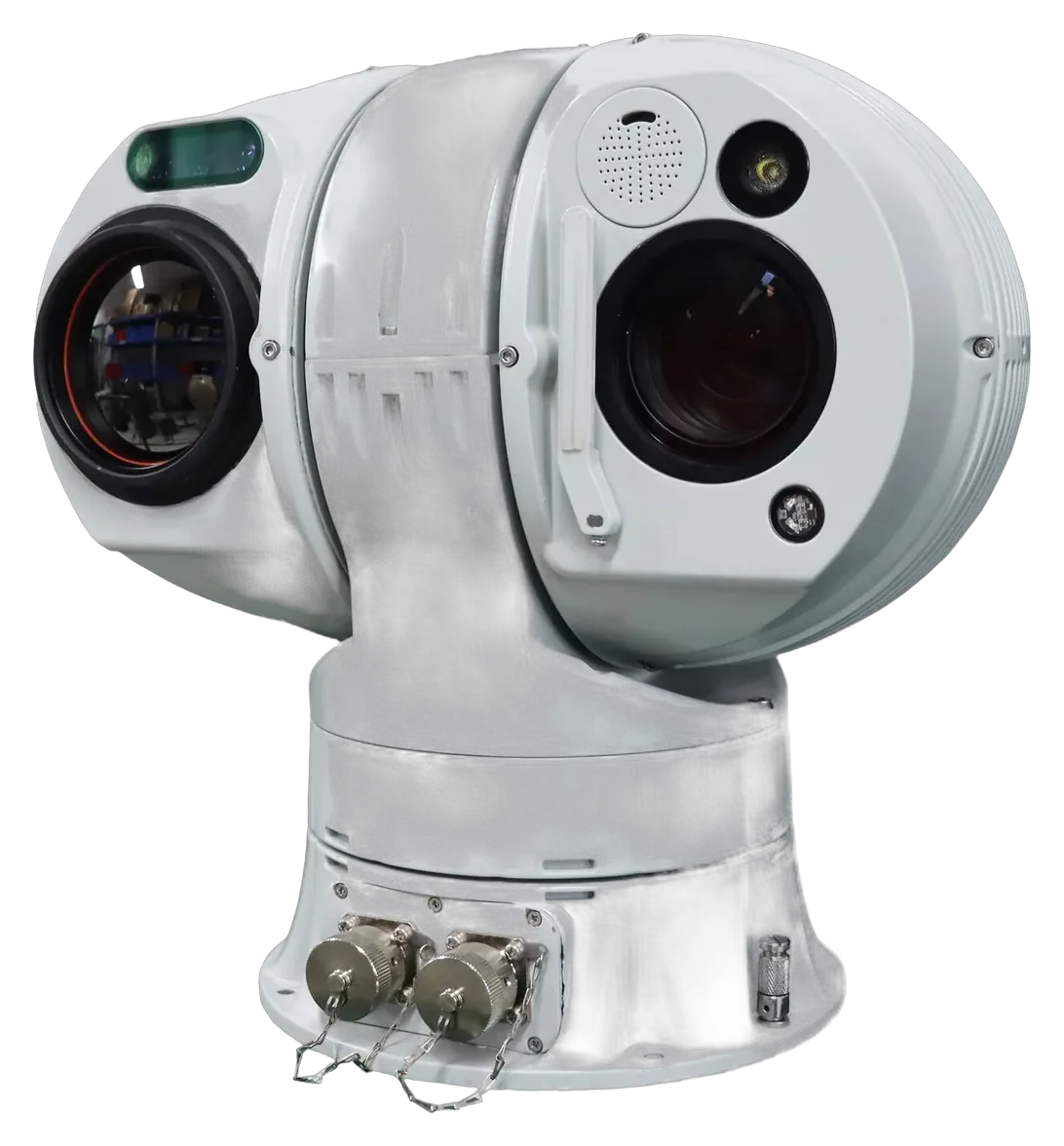

Product views
What is included
Standard and optional items listed in the specification sheet. Final packing list is confirmed in your quotation.
- EO/IR turntable
- Power and communication cables
- Control software licence (per specification)
Works with
Combine sensors and response equipment into one system around your site plan.
FAQ
DD-E2: frequently asked questions
What is the DD-E2?
The DD-E2 is a miniature EO/IR turntable that pairs a low-light HD visible camera with an uncooled 640 × 512 thermal imager for short-range drone verification and tracking.
How far can the DD-E2 see a drone?
For a 0.3 × 0.3 m drone at visibility of 15 km or more: visible detection 2500 m or more and tracking 2000 m or more; thermal detection 1000 m or more and tracking 800 m or more.
Can the DD-E2 track automatically?
Yes. An embedded hardware tracker supports multi-target capture, anti-occlusion tracking and cueing from radar, spectrum detectors or jamming equipment.
What are the DD-E2 weight and protection rating?
Under 12 kg, IP67, with a working temperature of −20 to +60 °C (−40 to +60 °C optional).
