Vehicle-Mounted Drone Detection & Countermeasure System

The vehicle-mounted drone detection system is essential for modern security operations. It provides mobile drone threat mitigation using vehicle-integrated RF detection and dynamic drone tracking on the move.

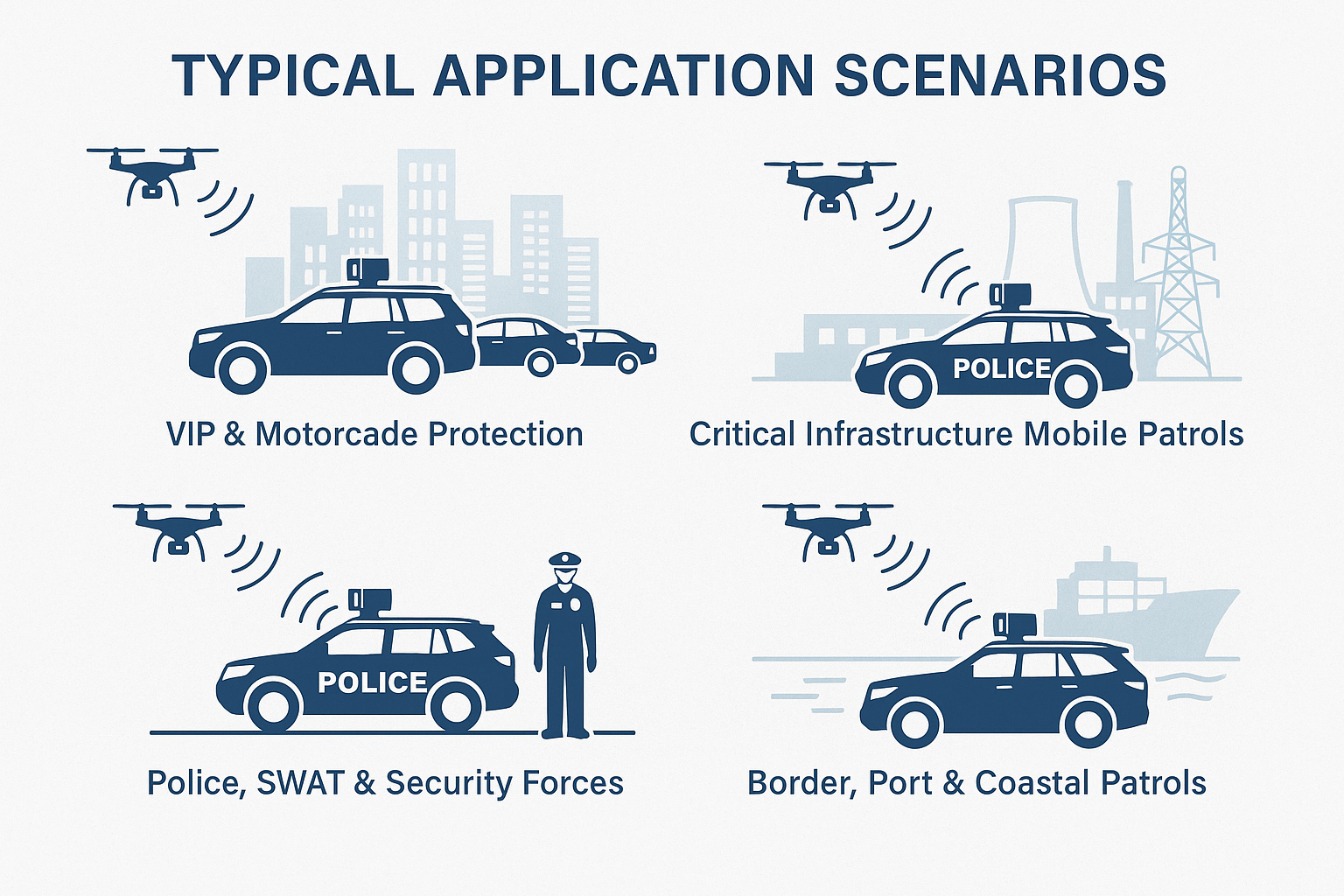

It features a moving-platform jamming system that supports 360-degree drone detection coverage and real-time drone alerting for patrol vehicles. Designed for low-altitude drone defense for mobile units, it enables patrol-vehicle airspace monitoring, motorcade drone protection systems, border patrol mobile C-UAS operations, and convoy protection anti-drone missions.

Our vehicle-mounted drone detection system strengthens vehicle-mounted situational awareness, including vehicular electronic countermeasures (ECM), drive-by drone detection, and a mobile RF suppression unit. It is powered by a kinetic-independent mobile countermeasure system with signal intelligence (SIGINT) on mobile platforms, auto-slew-to-cue integration for vehicles, terrain-adaptive RF scanning, and a mobile multi-sensor fusion engine.

For advanced protection, the platform adds a vehicular electronic warfare (EW) module, on-route drone reconnaissance detection, and a mobile detection-to-jamming workflow.

It also includes a drive-ready RF threat classifier and vehicular long-range C2 link suppression, delivering reliable, full-spectrum mobile counter-UAS capability with the vehicle-mounted drone detection system.

DR100-AB

vehicle mounted drone detection and jamming

360° Convoy Protection

The DR100-AB is a vehicle-mounted integrated drone detection and countermeasure system designed to protect moving convoys and critical routes.

It combines radio detection, protocol analysis, spectrum scanning, and powerful RF jamming in one platform, providing early warning, identification, tracking, and suppression of “black” drones around the vehicle in real time.

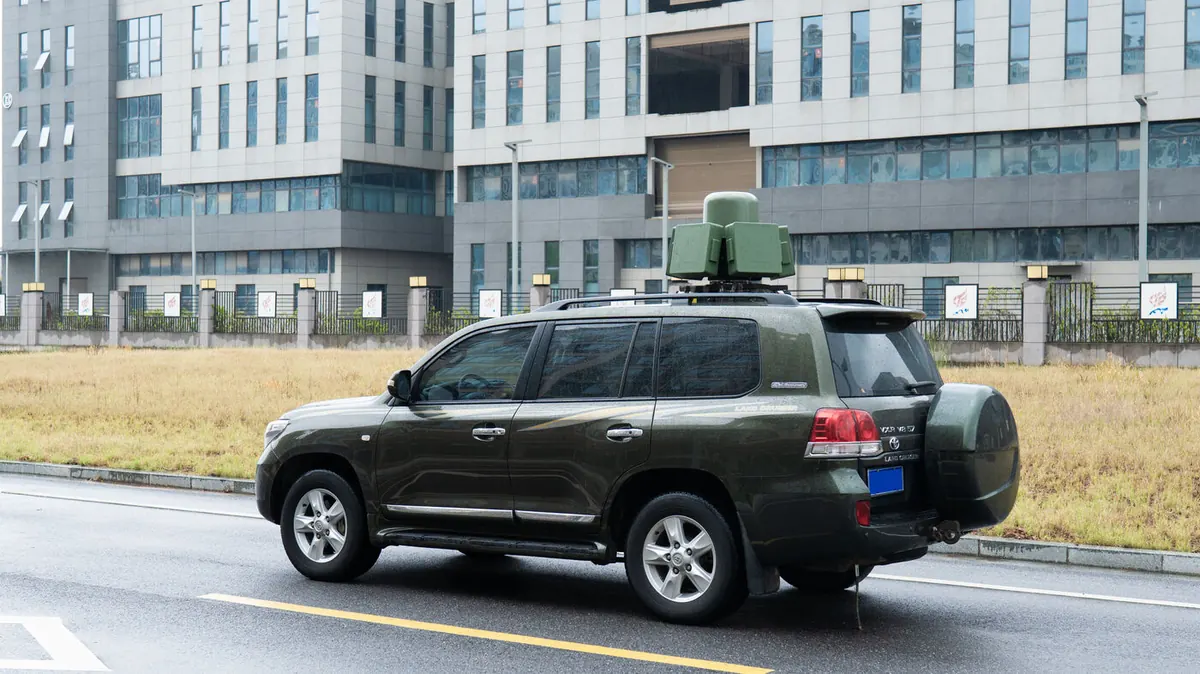

Mounted on cars or other platforms, it can protect a 3 km bubble around the convoy even at speeds up to 150 km/h, ensuring low-altitude airspace security on the move.

The vehicle-mounted drone detection system enhances security measures for critical operations.

It ensures safety against potential aerial threats.

Key Capabilities

The vehicle-mounted drone detection system is crucial for any modern security approach, providing real-time responses to drone threats.

Understanding the Vehicle-Mounted Drone Detection System

0–360° horizontal and −90° to +90° vertical coverage allows the system to monitor drones from all directions, including low-altitude and high-angle approaches.
360° Full-Space Coverage
Radio detection covers 300 MHz–6 GHz with a typical detection radius of 5 km, while RF jamming reaches approximately 3 km (depending on environment and drone type), forming a robust safety perimeter around the vehicle.
Long-Range Detection & Countermeasures
Supports full-band scanning of analog FPV video links from 500 MHz–6 GHz and can intercept and display first-person-view images, helping operators see exactly what the intruding FPV drone is seeing.
FPV Detection & Video Capture
In detection mode, the system is fully passive and does not transmit RF energy. When a threat is confirmed, it activates multi-band jamming to suppress control, data and navigation signals, forcing the target drone to lose control, return, or land.
Passive Detection + Active Jamming
Aerodynamic, low-wind-resistance design keeps the system stable on the roof at high speed, enabling drone detection and countermeasures while the vehicle is travelling up to 150 km/h, providing continuous low-altitude protection to the surrounding 3 km convoy area.
High-Speed Convoy Protection
Aerodynamic, low-wind-resistance design keeps the system stable on the roof at high speed, enabling drone detection and countermeasures while the vehicle is travelling up to 150 km/h, providing continuous low-altitude protection to the surrounding 3 km convoy area.
Flexible Deployment Modes
Aerodynamic, low-wind-resistance design keeps the system stable on the roof at high speed, enabling drone detection and countermeasures while the vehicle is travelling up to 150 km/h, providing continuous low-altitude protection to the surrounding 3 km convoy area.
Integrated Mapping & Alarm
Military-grade design with wide operating temperature range and high environmental adaptability ensures stable performance from −20 °C to +60 °C and during long-term outdoor operations.
Rugged, All-Weather Design

Wide-Band Scanning & Feature Extraction

The detection unit scans the 300 MHz–6 GHz band, using spectrum scanning and protocol analysis to capture and identify the unique “fingerprints” of mainstream multi-rotor, fixed-wing and FPV drones.

Threat Identification & Tracking

Once a signal is detected, the system estimates direction, distance, altitude and other parameters. On the map interface, operators can quickly see where the drone is relative to the convoy.

FPV Video Interception (Optional)

For FPV drones, the system can lock onto analog video transmissions, decode and display live FPV images to help assess the intruder’s target and intent.

Targeted RF Countermeasures

The jamming unit outputs high-power interference across key control and navigation bands (900 MHz, 1.2 GHz, 1.5 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz), cutting off the drone’s link with its controller and satellite navigation. This forces the drone to hover, return, land or crash depending on its fail-safe logic.

Multi-Device Networking

The system supports networking with other detection and control units, enabling coordinated defense across multiple vehicles or fixed points to cover larger areas and complex mission routes.

How DR100-AB Works

Understanding the vehicle-mounted drone detection system’s capabilities can significantly improve operational effectiveness in various scenarios.

The system scans 300 MHz–6 GHz to detect drone signals. It identifies threats, intercepts FPV video, and deploys targeted RF jamming while supporting multi-device networking for coordinated, large-area mobile protection.

The vehicle-mounted drone detection system plays a vital role in contemporary defense strategies.

It adapts to an array of environments and situations.

Technical Highlights



  • Detection Mode: Passive RF detection, no active transmission in scan mode



    .

  • Detection Band: 300 MHz–6 GHz.

  • Detection Radius: Up to 5 km (depending on environment and drone type).

  • FPV Analog Video Detection: 500 MHz–6 GHz, FPV video capture distance ≥1.5 km with real-time video viewing.

  • Jamming Distance: Around 3 km (depending on environment and drone type).

  • Jamming Bands: 900M / 1.2 GHz / 1.5 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz, with six defined working channels and high output power per band.

  • Response Time: Drone discovery ≤5 s from detection start; jamming response ≤3 s.

  • Power Consumption: Total system power ≤2300 W; supports AC 220 V and mobile power supply with ≥30 min full-band continuous operation.

  • Operating Temperature: −20 °C to +60 °C; storage temperature −60 °C to +85 °C.

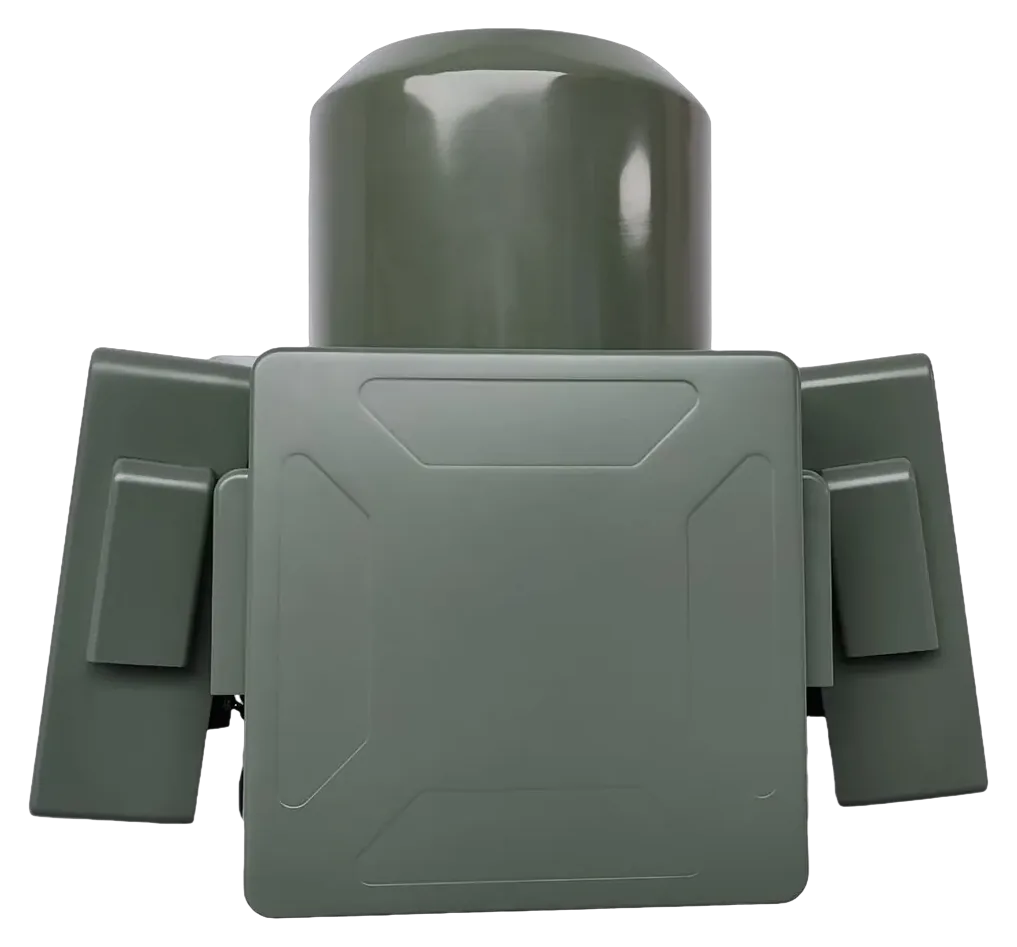

  • System Form Factor: Main host with shield-type jamming units, detection unit, power system and control system; supports vehicle-mounted, fixed and tripod-based semi-portable deployment.
