Advanced Fixed-Site Drone Detection System: DR200-C
Introducing the DR200-C Fixed-Site Drone Detection System
The DR200-C is an integral component of our fixed-site drone detection system, meticulously designed to bolster security and surveillance capabilities. This fixed-site drone detection system enhances the safety of various environments.
Our state-of-the-art DR200-C fixed-site drone detection system provides long-range RF drone detection and 24/7 monitoring to safeguard critical infrastructure, utilizing automated drone threat mitigation and real-time response. With a powerful RF jamming unit, it supports multi-band drone jamming, both directional and omnidirectional jamming, alongside GNSS disruption to ensure comprehensive drone intrusion prevention. Tailored for low-altitude drone defense, the DR200-C fixed-site drone detection system seamlessly integrates detection and mitigation processes, ensuring effective anti-drone defense for high-risk facilities like prisons and borders.
The DR200-C employs a fixed-spectrum surveillance array and a coordinated detection and jamming framework to secure strategic locations with automated RF threat classification and efficient electronic countermeasure (ECM) actions. The multi-node detection network collaborates with a remote command-and-control jamming system to deliver precise signal suppression for drone C2 links, establishing a robust fixed-site drone detection system for high-security environments.

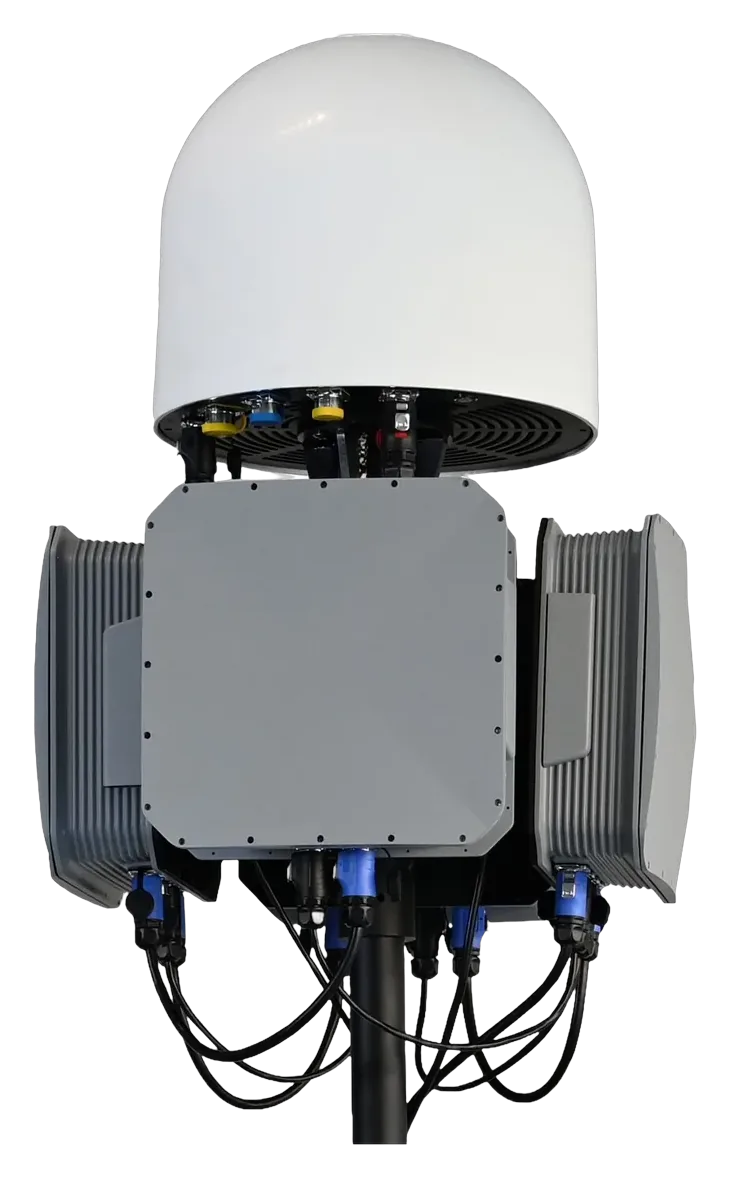

DR200-C Fixed Counter-Drone System
The advanced fixed-site drone detection system is designed for versatility and efficiency in any situation.
The DR200-C is a fixed, integrated drone detection and jamming system combining RF detection, FPV video interception, and multi-mode radio interference into one platform. It detects, identifies, locates, and suppresses unauthorized drones, forcing them to hover, land, or return. Designed for 24/7 unattended operation, the system protects airports, government facilities, energy sites, borders, and major events.
This fixed-site drone detection system integrates cutting-edge technology to identify and neutralize threats quickly.
Key Capabilities
Utilizing a fixed-site drone detection system helps maintain the safety of sensitive areas by preventing unauthorized drone access.
Full-Band Drone RF Detection
70MHz–6GHz full-band scanning Detects DJI, Autel, FPV drones, DIY drones Extracts drone model, SN, pilot/home position, trajectory
Long-Range Recognition & Tracking
≥10 km detection distance 360° horizontal monitoring Direction-finding accuracy ≤±3° (Detection distance, DF accuracy
Multi-Mode Jamming System (Omni + Directional)
≥3 km jamming 360° omnidirectional suppression Directional high-power strike for critical frequencies Covers remote control, data link, GNSS, FPV analog
FPV Video Interception
500MHz–6GHz analog video capture Real-time video preview Supports recording & storage (FPV real-time analog support
Cloud Platform & Unattended Operation
Automatic detection → tracking → jamming Device status monitoring (offline/abnormal) Blacklist/whitelist Log playback & intrusion statistics GIS map with device & target markers
Expandability & Integration
Supports integration with radar, EO cameras, navigation spoofing, multi-device networking
Technical Specifications
Our fixed-site drone detection system provides comprehensive monitoring and defense capabilities, ensuring peace of mind.
The DR200-C delivers professional-grade performance through full-band RF detection, long-range tracking, and multi-mode jamming. Its robust technical specifications ensure reliable 24/7 protection, seamless system integration, and stable operation across complex mission environments and critical infrastructure sites
| Feature | Specification |
|---|---|
| Detection Frequency | 70MHz–6GHz full band |
| Key Bands | 800/900/1.2/1.4/2.4/5.2/5.8 GHz |
| Detection Range | ≥10 km |
| FPV Video Capture | 500MHz–6GHz |
| Jamming Range | ≥3 km |
| Omnidirectional Jamming | 420MHz–6GHz multi-band |
| Directional Jamming | 850MHz–950MHz, 2.3–2.5GHz, 5.1–5.3GHz, 5.72–5.86GHz |
| Response Time | Detection ≤10s, Jamming ≤7s |
| Operating Temperature | –40°C to 60°C |
Deployment Scenarios
Organizations that employ a fixed-site drone detection system significantly enhance their security measures against aerial threats.
The DR200-C strengthens frontline defense by providing long-range drone detection, precise tracking, and autonomous jamming. It protects sensitive military zones and border corridors from reconnaissance drones, smuggling activities, and unauthorized aerial intrusion, ensuring continuous situational awareness and secure low-altitude airspace in complex field environments.
Critical energy facilities rely on the DR200-C to detect unauthorized drones that pose risks to safety, operations, and infrastructure integrity. Its long-range monitoring and multi-band jamming help prevent espionage, sabotage, and hazardous inspections, ensuring stable, uninterrupted operations in high-risk industrial environments.
For large gatherings, the DR200-C delivers wide-area coverage to detect and suppress drones that may pose safety, privacy, or crowd-related risks. It helps event organizers and security teams maintain controlled airspace, ensuring safe operations during concerts, sports events, public ceremonies, and mass-attendance venues.
The DR200-C enhances airport safety by monitoring low-altitude airspace, identifying rogue drones, and automatically activating countermeasures. It prevents runway disruptions, protects aircraft operations, and ensures compliance with strict aviation regulations. Ideal for terminals, airfields, and restricted zones requiring reliable 24/7 anti-drone protection.
The DR200-C safeguards government buildings by continuously scanning nearby airspace, identifying drone threats, and neutralizing them before reaching sensitive areas. It strengthens security for administrative centers, leadership residences, and diplomatic zones, providing reliable defense against surveillance, data collection, and potential airborne threats.
The DR200-C prevents drone-based smuggling by detecting and countering drones attempting to deliver contraband to inmates. Its precise location tracking and targeted jamming protect facility perimeters, reduce security vulnerabilities, and help maintain strict operational control across correctional environments.
